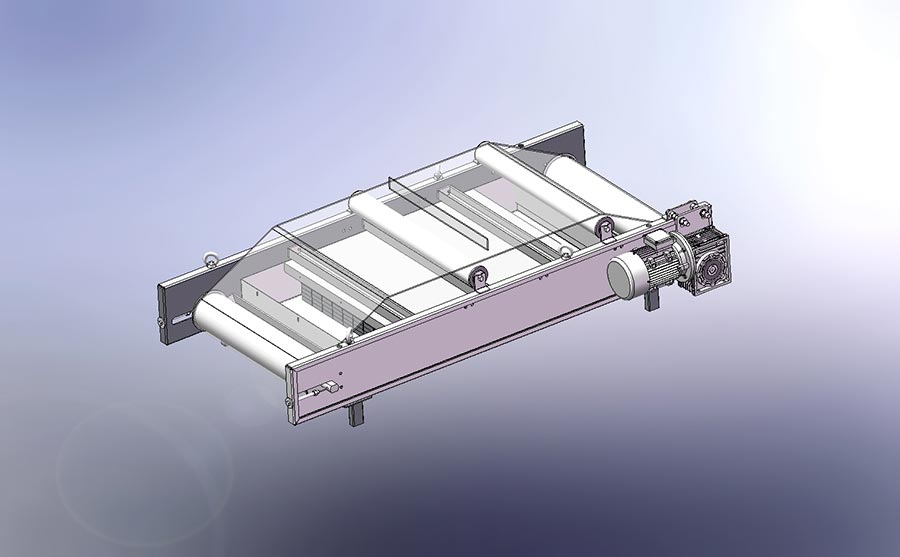

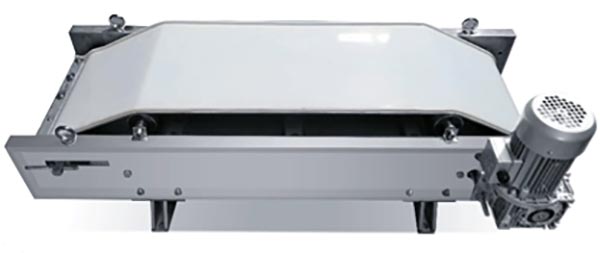

Force Magnetic Solution Magnetic overband separator are the industry's go-to solution for purifying dry powders and granules. They precisely remove magnetic impurities, vital for refining lithium anode and cathode materials. Boasting advanced magnetic technology and a user-friendly design, these separators guarantee product purity and quality. They're simply indispensable for achieving manufacturing excellence in today's world.
| Performance Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model |
Applicative width (mm) |
Rated height (mm) |
Magnetic intensity (mT) |
Thickness for materisls (mm) |
Motor power (kw) |
Speed (M/S) |
Weight (KG) |
Appesrance size L*W*H (mm) |
| FNS-PD-500 | 500 | 150 | 60 | 80 | 1.5 | 4.5 | 750 | 1900*735*935 |
| FNS-PD-650 | 650 | 200 | 70 | 150 | 2.2 | 4.5 | 1200 | 2165*780*1080 |
| FNS-PD-800 | 800 | 250 | 70 | 200 | 2.2 | 4.5 | 1400 | 2350*796*1280 |
| FNS-PD-1000 | 1000 | 300 | 70 | 250 | 3.0 | 4.5 | 2120 | 2660*920*1550 |
| FNS-PD-1200 | 1200 | 350 | 70 | 300 | 4.0 | 4.5 | 3350 | 2900*970*1720 |
| FNS-PD-1400 | 1400 | 400 | 70 | 350 | 4.0 | 4.5 | 4450 | 3225*1050*1980 |
1.It uses computer simulation design with double magnetic poles structure.
2.NdFeb magnet is adopted so that it is with high coercive force and high intensity.
3.It is self-cleaning,widely used and very convenient for maintaining.

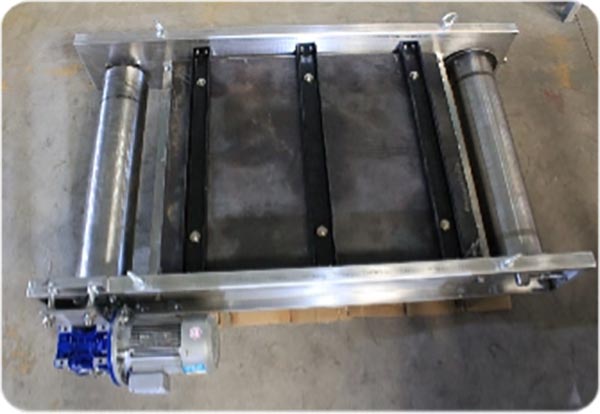

4.Traditional roller is of drum structure.It is with self-correcting for belt function, dust protected bearing pedestal and low failure rate for complete machine.

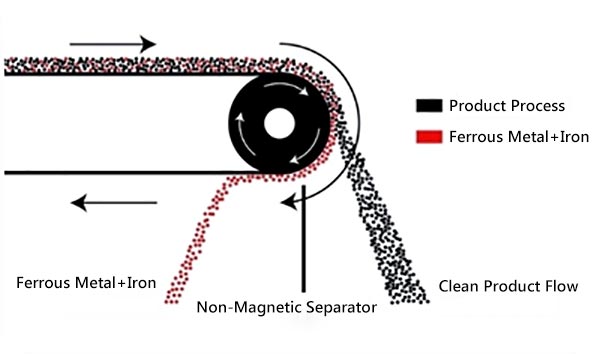

1.The separator can be positioned either crosswise or lengthwise above the conveyor belt, allowing for maximum exposure of the material flow to the magnetic field.
2.Equipped with powerful magnets, the separator is capable of capturing even small ferrous particles from the material flow.
3.Once the ferrous contaminants leave the area of the magnetic field, they are automatically discharged into appropriate collection chutes or containers.
4.The separator maintains a fixed working distance from the conveyor belt, ensuring consistent and reliable separation performance.
